A span table connects a set of stated design conditions with a permitted span or related design value. The important first step is checking whether those stated conditions match the work. Finding a number that appears to fit the room is not enough.
Tables for different materials and products are not interchangeable. A table for sawn-lumber joists does not automatically apply to an engineered beam, aluminum enclosure member or other structural system.

Read the title and notes before the values
Identify the material, member type and intended application. Then read the notes defining the table’s limits. The American Wood Council’s span-table tutorial explains how material properties, loads and deflection limits relate to selecting and using wood span tables.
The table’s source and edition matter as well. For a proprietary product, use the applicable manufacturer’s information and confirm that the product is the one actually specified for the project.
Spacing and span are different dimensions

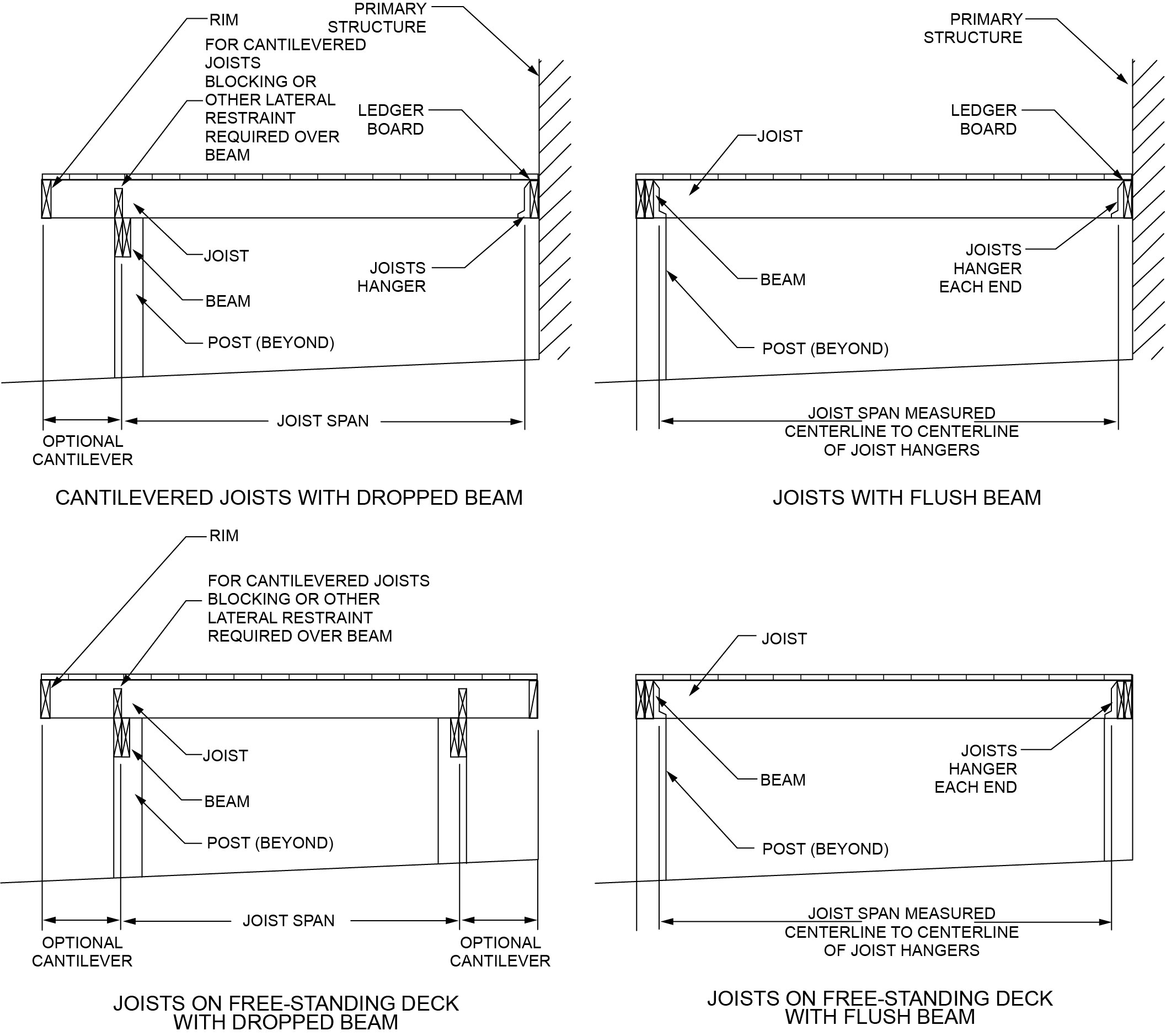

Spacing is the distance between adjacent joists or rafters, usually measured on center. Span is the distance the member bridges between its supports as defined by the table. Bearing is the length of contact at a support. Confusing these measurements can lead to reading the correct row for the wrong physical condition.
For example, members may be placed 16 inches on center while spanning across a room. Sixteen inches is not the room span, and the distance between the supporting walls is not the member spacing. The exact span measurement must follow the table’s instructions, particularly where support widths or overhangs are involved.
Match the units and inputs
Check how span, spacing and load are expressed. A measurement in feet and inches is not a decimal-foot value. Member spacing is also a different measurement from the distance the member spans.
For wood, species and grade can affect the applicable design properties. Loads and deflection criteria also need to match the intended use. Do not select a more favorable row simply because a needed input is unknown.
Read loads before choosing a lumber size
Dead load comes from the permanent construction represented in the design. Live load concerns the applicable occupancy or use loading. A table based on one combination of loads should not be used for a different combination without a valid method.
Consider an arithmetic illustration, not a sizing recommendation: a uniform area load of 50 pounds per square foot acting on a member’s 16-inch tributary width corresponds to approximately 66.7 pounds per linear foot. The calculation is 50 multiplied by 16/12. It demonstrates why spacing affects the load carried by each member; it does not select an allowable span or establish the loads appropriate for a room.
Strength and deflection are separate checks
A member needs adequate strength, and its movement may also need to remain within the specified serviceability limit. An L/360 notation expresses a deflection limit as the span divided by 360. For an illustrative 12-foot span, 144 inches divided by 360 equals 0.4 inch. This explains the notation only; it does not declare L/360 the governing limit for every material or assembly.
Finishes, intended use and the relevant code or product criteria may influence the applicable requirements. A table entry cannot be chosen solely because it avoids a strength problem while disregarding the stated deflection criterion. The AWC calculator help explains additional assumptions and adjustments behind its tools.
Follow one table entry through its assumptions
A useful educational worksheet has fields for source, material, grade, member size, spacing, loads, deflection, bearing and table limitations. Fill those fields before reading the result. If a field is missing, the worksheet has identified an unanswered design question.
This is more informative than a chart listing one universal span for each lumber size. Such a chart can hide the factors that produce the result and invite readers to apply it to conditions it does not cover. The infographic distinguishes span, spacing and bearing without prescribing member capacities.
A simple reading sequence
1. Confirm the table applies to the material and member type.
2. Identify the stated loading and deflection criteria.
3. Match the member properties and spacing.
4. Read the resulting value using the correct units.
5. Check notes, bearing conditions and other stated limitations.
This sequence explains how to read a table. It does not establish that a proposed structural assembly is adequate.
Recognize conditions the table may not cover
A concentrated load, unusual support arrangement, opening or altered member may fall outside the assumptions of a simple table. Connections and supporting construction also need attention. A member that fits a span entry is not automatically supported or connected correctly.
Consider a conceptual example: an owner finds a table based on regularly spaced members under a stated uniform load, but the proposed work introduces a localized load from equipment. The important question is whether the table still applies, not which entry gives the longest span. No member size can be selected from that description alone.
Common questions about floor joist span charts
Can I interpolate between two entries?
Only where the source permits an applicable method and the design professional confirms its use. Do not invent an intermediate capacity because a dimension falls between rows.
Can a table for joists be used for a beam?
Not automatically. The loading, support conditions and design assumptions may differ. Select a resource applicable to the actual member and construction system.
Does doubling a member double its span?
No. Built-up assemblies require appropriate evaluation of load sharing, connections, supports and the applicable design criteria. Span is not a quantity that can be doubled by simple material counting.
What if an existing member was drilled or notched?
Provide the location and dimensions of the alteration for review. The unaltered-member table does not by itself approve a hole, notch or damaged area.
Existing framing needs more than a table lookup
When working with an existing structure, actual dimensions, condition and previous modifications may be uncertain. A table does not reveal hidden damage or confirm a member’s grade. Available plans and photographs can support an initial discussion, but the engineer will identify what information is needed.
Gather the drawing, table source, member information, span measurements and proposed use before requesting a review. Mark uncertain inputs clearly.
